Depth Estimation and Application



Lijun Wang

July 1, 2018


Black - White

Topics


  • Architecture
  • Loss Function
  • Training Strategy
  • Application on RGB-D

Depth Map Prediction from a Single Image using a Multi-Scale Deep Network

By Eigen et al., NIPS 2014

Depth Map Prediction from a Single Image using a Multi-Scale Deep Network

  • Much of the error is explained by how well the mean depth is predicted
  • 20% relative improvement
  • Scale invariant loss:

    $D(y,y^{*}) = \sum \limits_{i,j} [(\log y_i - \log y_j) - (\log y^*_i - \log y^*_j)]^2$

One Multi-Scale Architecture for Multi-Task

[1] Eigen et al, Predicting Depth, Surface Normals and Semantic Labels with a Common Multi-Scale Convolutional Architecture, ICCV 2015


  • Multi-scale architecture
  • Solve multiple tasks
  • Scale-invariant loss + Gradient loss

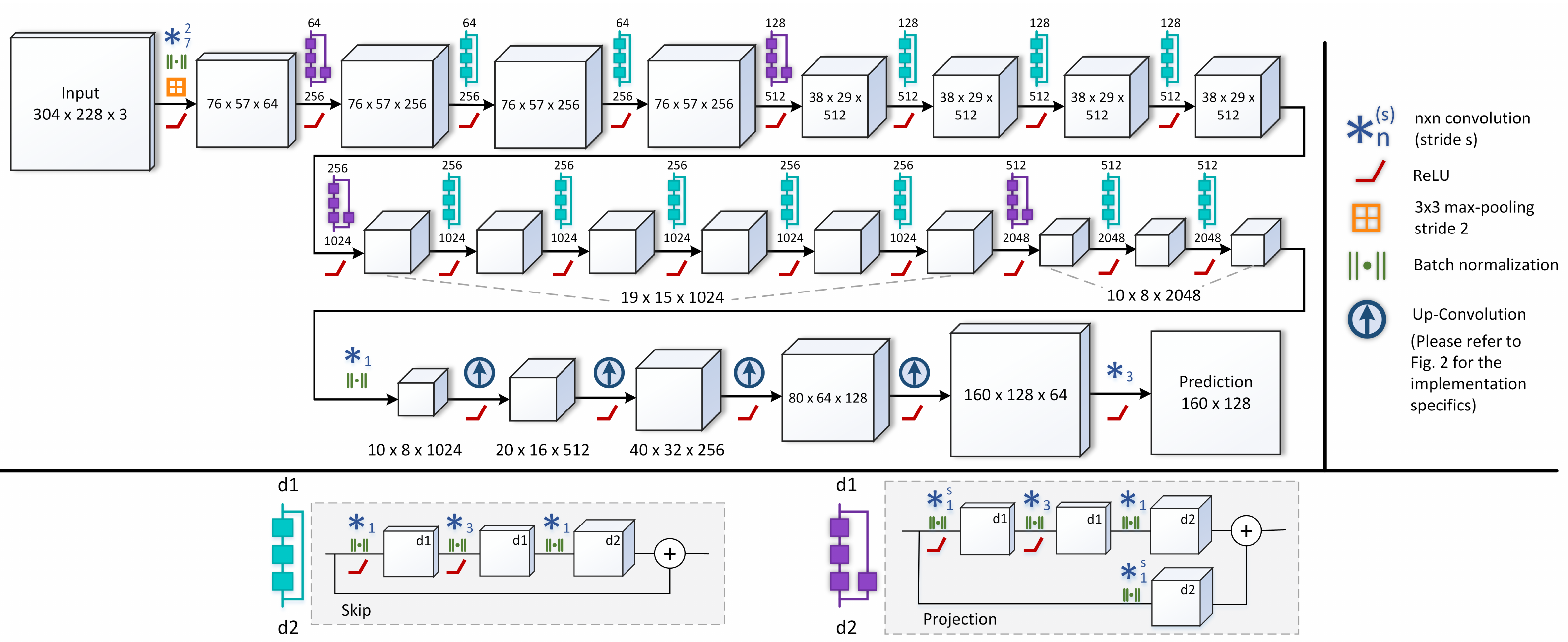

Deeper Depth Prediction with Fully Convolutional Residual Networks

By Laina et al, IEEE International Conference on 3D Vision 2016

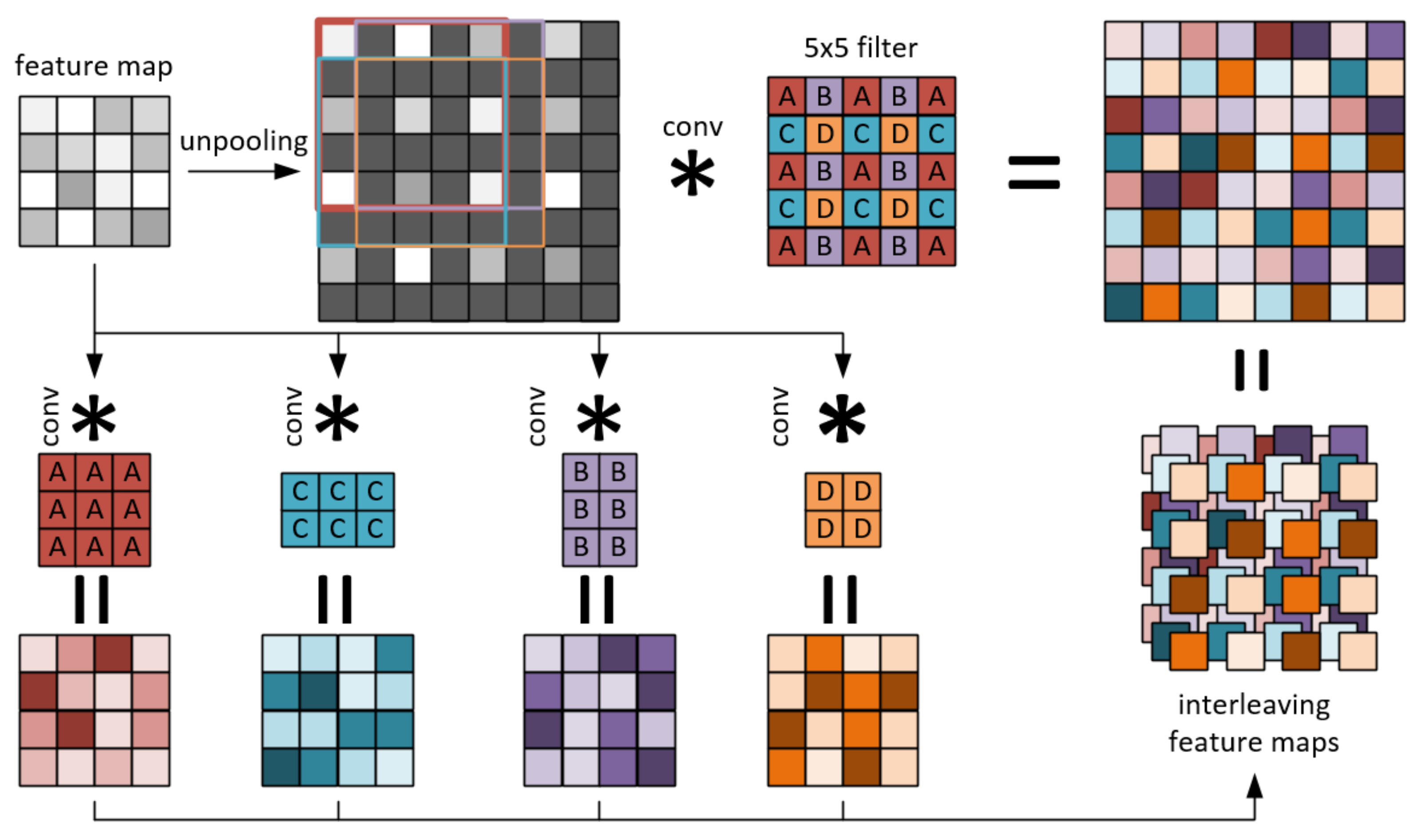

Faster Up-Convolution

Faster Up-Convolution

A Two-Stream Network for Depth Estimation

[2] Li et al, A Two-Streamed Network for Estimating Fine-Scaled Depth Maps from Single RGB Images, ICCV 2017

A Two-Stream Network for Depth Estimation

  • Set Loss

    • $L_{\textrm{single}} + \Omega_{\textrm{set}}$

  • Fusing Depth and Depth Gradient
    • End-to-end as refinement
    • Optimization

      • $D^* = \arg \min \limits_{D} \sum \limits _{p=1}^{N} \phi (D^p - D^p_{est}) \\ + \alpha \sum \limits_{p=1}^{N} [\phi (\nabla_x D^p - G_x^p) + \phi (\nabla_y D^p - G_y^p)]$

How about training data?

Existing Depth Data Set

DataSet Statics Anotation Scene
NYUD-v2 1449 + 407K raw Depth + Segmentation Indoor
KITTI 94k frames Depth aligned with raw data Street
Make3D 500 low-resolution Depth Outdoor
SUNRGB-D 10k Depth, Segmentation, 3D bounding box Indoor

Drawbacks of Exising Data Sets

  • Very limited in terms of scene variety
  • Trained models struggle to generalize across scenes

Solution


Different training strategies:

  • Weakly supervised training
  • Unsupervised training
  • Semi-supervised training
  • Multi-task training

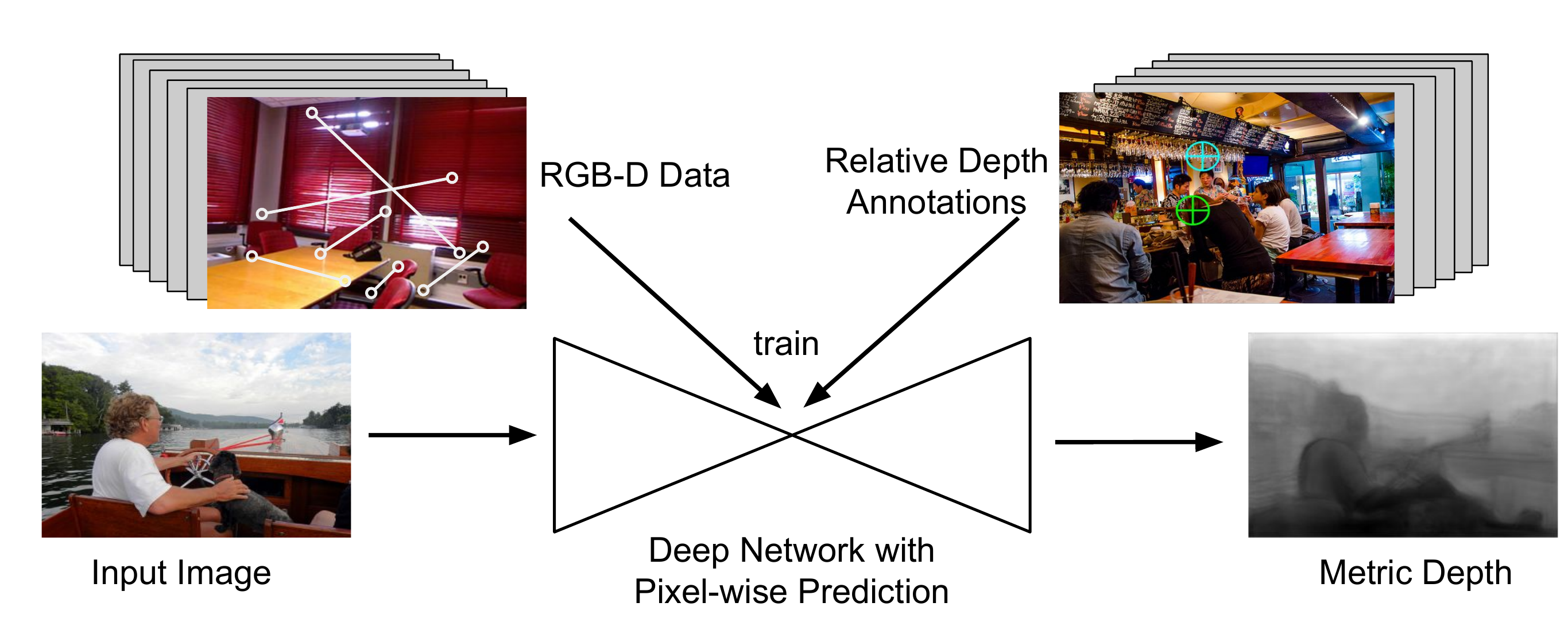

Single-Image Depth Perception in the Wild

By Chen et al, NIPS 2016

Motivation

Increase scene diversity with interenet images.

Challenge: How to Acquire Depth



Humans are better at judging relative depth:

“Is point A closer than point B?”

A relative depth data set

Data Collection



  • Gather 0.5M images from Flickr
  • Anotate relative depth for one pair of points per image

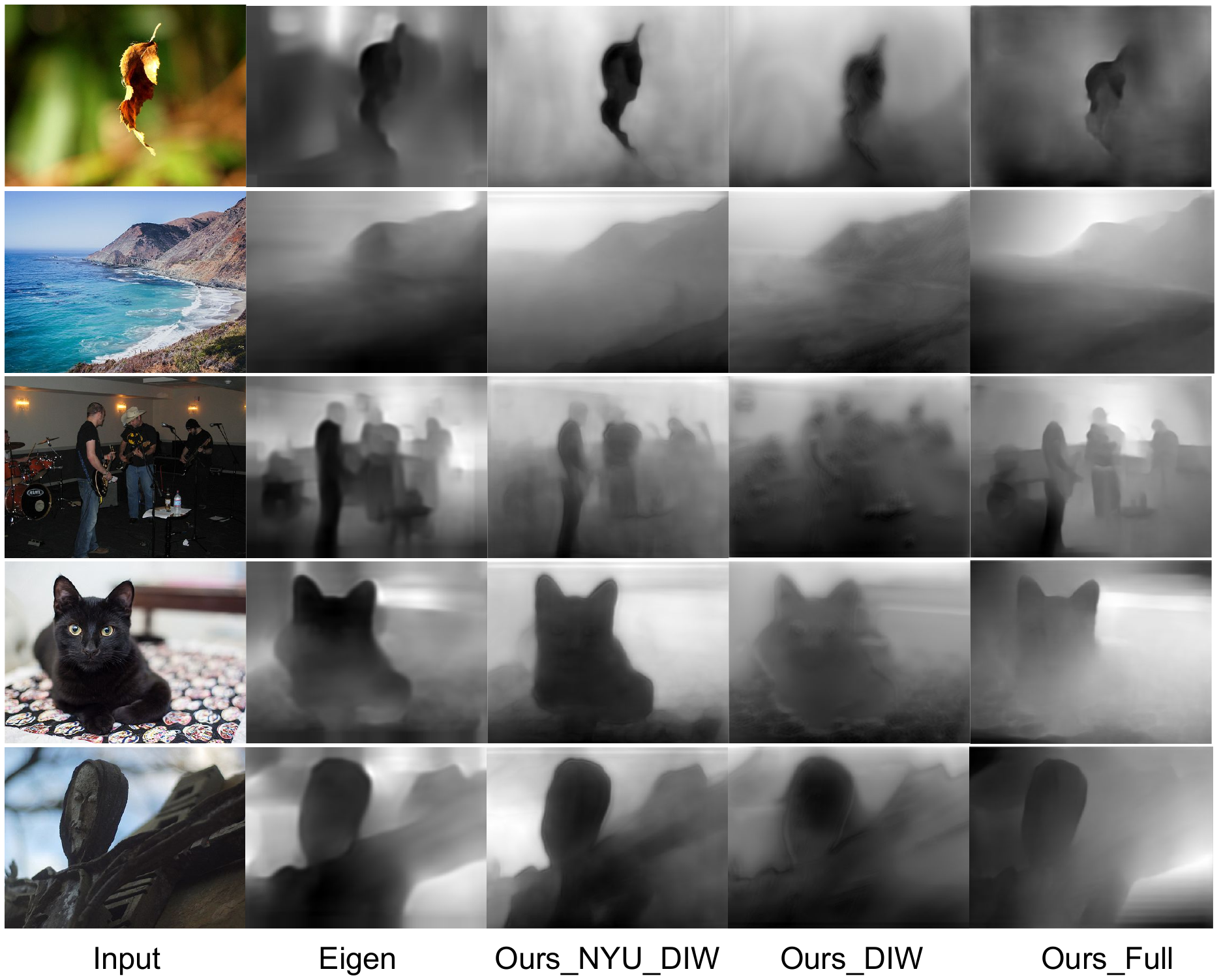

Learning with Relative Depth

Ranking Loss:

$L(I,R,z)=\sum \limits_k \psi(I, i_k, j_k, r, z)$

where the loss for the $k$-th quiry:

$\psi(I, i_k, j_k, r, z) = \begin{cases} \log (1+\exp (-z_{i_k} + z_{j_k})), & \mbox{if } r_k=+1\\ \log (1+\exp (z_{i_k} - z_{j_k})), & \mbox{if } r_k=-1 \\ (z_{i_k} - z_{j_k})^2, & \mbox{if } r_k=0 \end{cases}$

Generate GT Depth from Multi-view Internet Images

[3] MegaDepth: Learning Single-View Depth Prediction from Internet Photos, CVPR 2018, WebPage
  • Landmark10k data sets with multi-view photos for each landmark
  • Build 3D model for each collection with SfM
  • Depth Reconstruction with MVS

Data Categorization: Euclidean vs. Ordinal Depth

If $\ge 30\%$ valid depth ⇒ Euclidean loss

Otherwise ⇒ ordinal loss

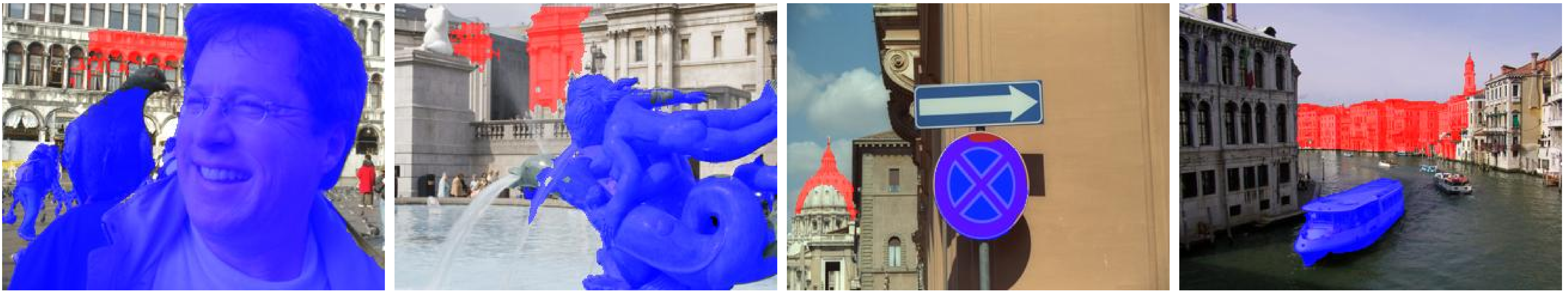

Determine foreground with semantic info

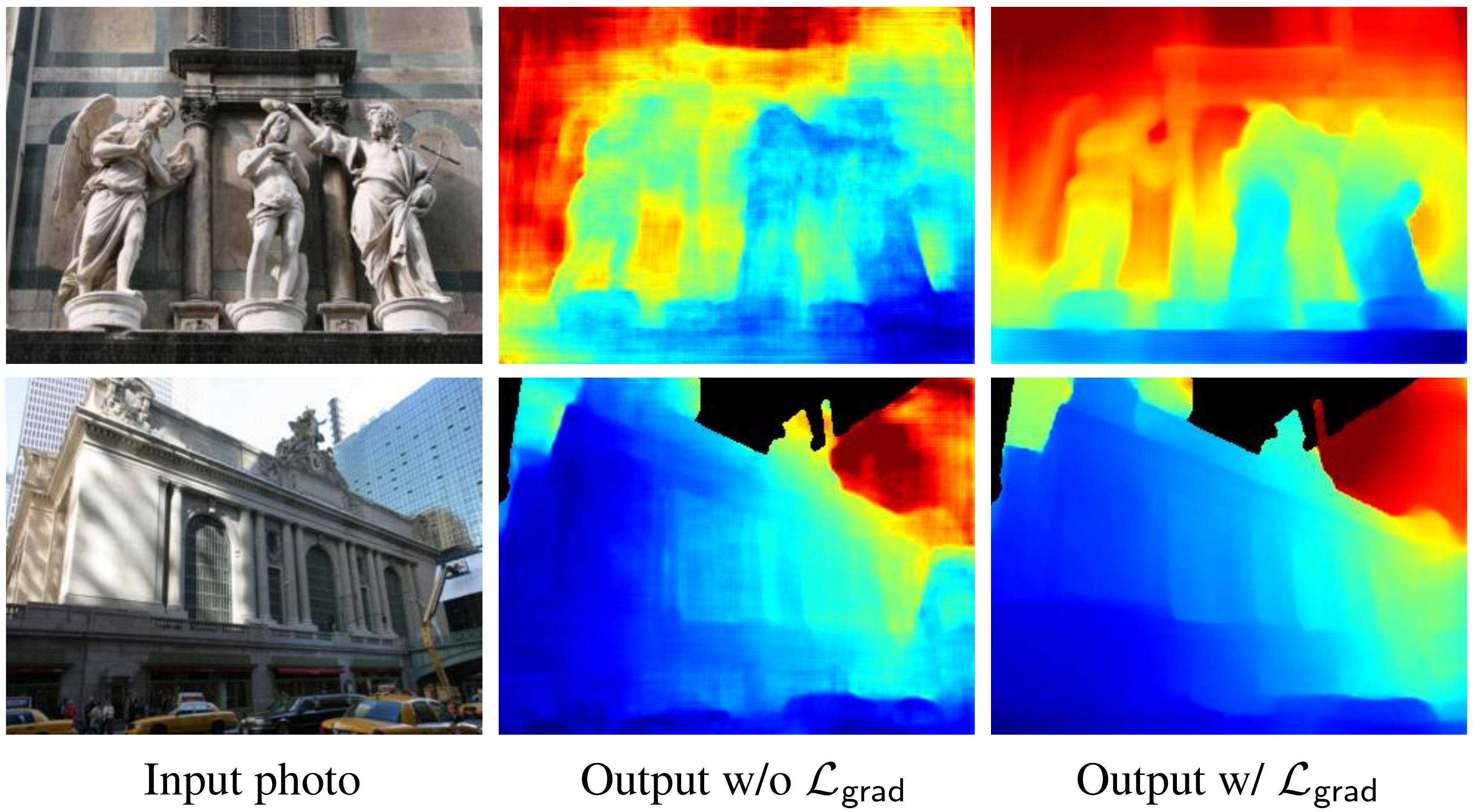

Loss Function

$L = L_{\mbox{data}} + \alpha L_{\mbox{grad}} + \beta L_{\mbox{ord}}$

$L_{\mbox{grad}}=\frac{1}{n} \sum \limits_k \sum \limits_i (|\nabla_x R_i^k + \nabla_y R_i^k|)$

A Similar Work

[4] Monocular Relative Depth Perception with Web Stereo Data Supervision, CVPR 2018
  • Collect stereo web images for depth estimation
  • Compute optical flow to infer disparity (depth)
  • Still use ordinal loss but sample point pairs online
    • (Absolute depth is unavailable?)

Learning Depth Estimation from Image Alignment Loss

[4] Semi-Supervised Deep Learning for Monocular Depth Map Prediction, CVPR 2018
  • Supervised: sparse depth supervision
  • Unsupervised: image alignment

Similar Ideas using Monocular Videos

Similar Ideas using Monocular Videos

[5] Unsupervised Learning of Depth and Ego-Motion from Video, CVPR 2017

[6]GeoNet: Unsupervised Learning of Dense Depth, Optical Flow and Camera Pose, CVPR 2018

[7]Learning Depth from Monocular Videos using Direct Methods, CVPR 2018

Aperture Supervision for Monocular Depth Estimation

By Srinivasan et al, CVPR 2018

Image ⇒ Depth ⇒ Rendering function ⇒ Shallow DoF

Scenarios are limited, mainly flowers

Additional Works with New Training Strategies

[8]PAD-Net: Multi-Tasks Guided Prediction-and-Distillation Network for Simultaneous Depth Estimation and Scene Parsing, CVPR 18

Additional Works with New Training Strategies

[9]AdaDepth: Unsupervised Content Congruent Adaptation for Depth Estimatio, CVPR 18

Additional Works with New Training Strategies

[10]Salience Guided Depth Calibration for Perceptually Optimized Compressive Light Field 3D Display, CVPR 18

Future Directions

  • Borrow idea from saliency for depth estimation
  • Depth completion/refinement from sparse input
  • Application based on RGB-D data

Application on RGB-D
